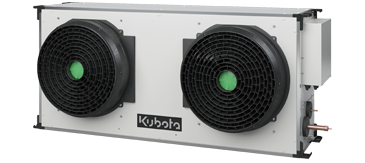

AREA Air Conditioner

Large airflow & energy saving

Best choice for workshop air conditioning

The maximum air volume is 130 m3/min. Since the wind velocity is 1 m/s even at away, it is even possible to deal with facilities with a large area.
※It is said that air of 1m/s will lower the perceived temperature by 4 degrees.

Airflow reach distance (Unit : m)

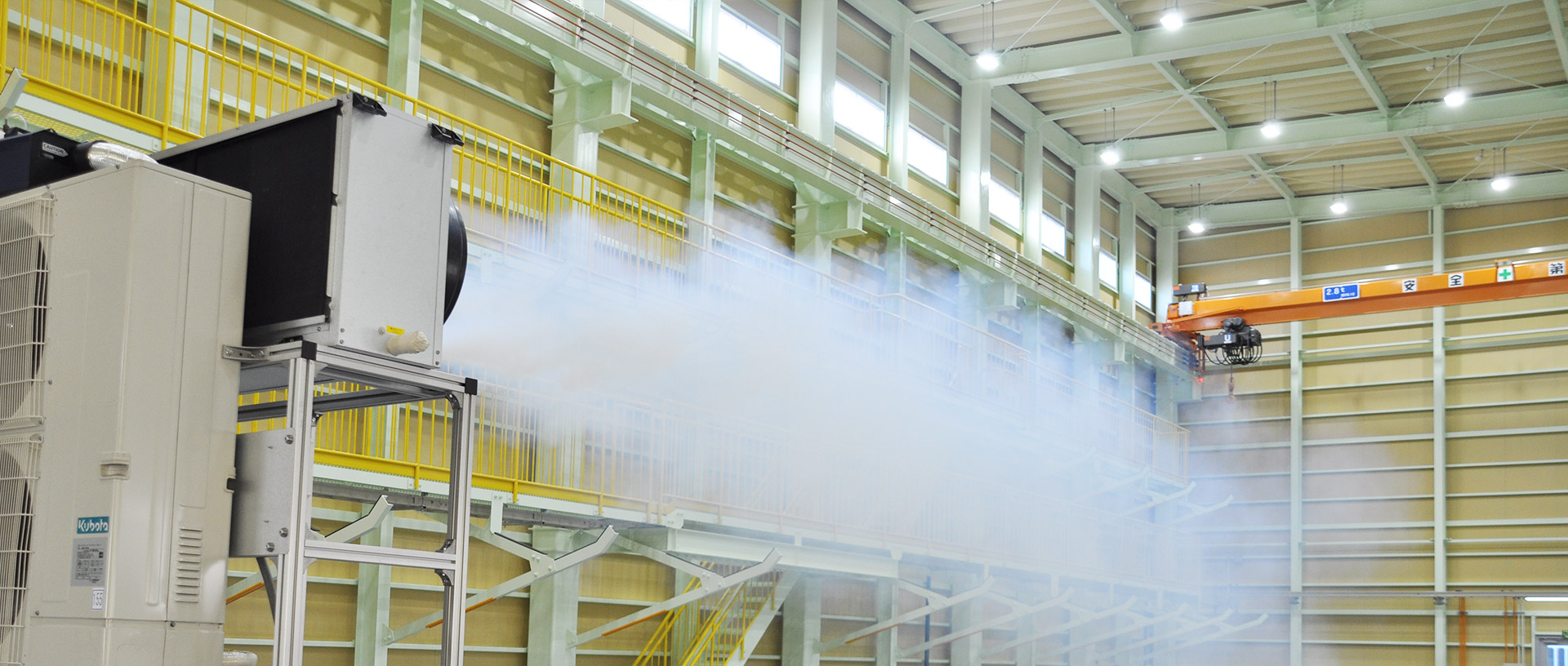

Airflow difference

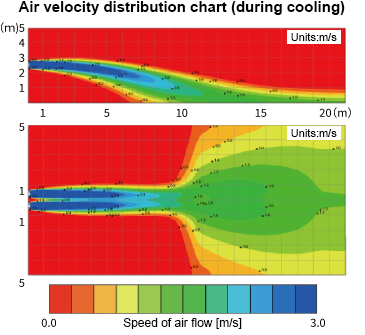

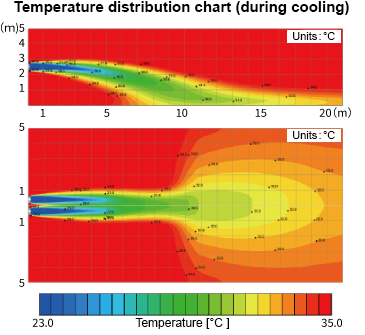

  • Analysis CG for installation of two units (in series)

  • AREA Air Conditioner - Standard

  • AREA Air Conditioner - With option attachment (flexible nozzles)



Compare the options
The wind is carried further than with an air conditioner and it is possible to supply cold air without the impact on humidity that occurs with a water spray cooler or water vaporization type cold air fan.



Wall-hanging and suspended - Thin type

The workplace is not disturbed

Since the indoor unit is thin, there is little influence on the work space, such as the operating range of an overhead crane.

Compare the options
The advantages of the separate type are that less space is required for the indoor unit, the heat exhaust is outdoors, and it is not necessary to handle the condensate water, which is necessary on a spot cooler.

Installation set to unused space

AREA AIR CONDITIONER comes in wall / ceiling mounted types that can be installed using the vacant space in the facility. Also, the wiring and piping do not interfere with the workspace.

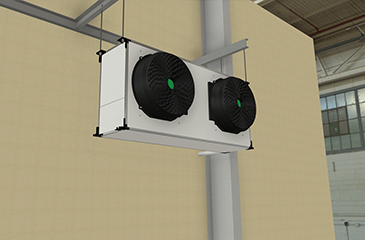

Ceiling

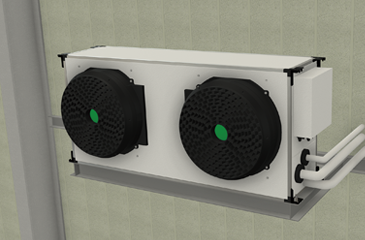

Wall-mounted


Example of installation

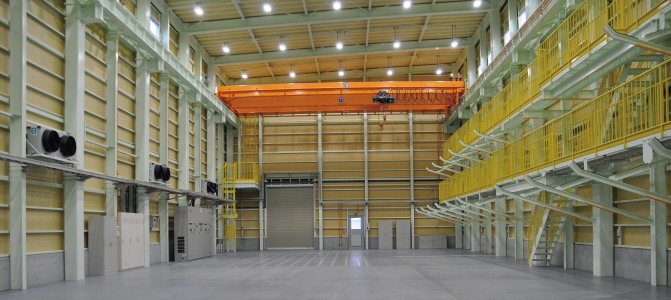

example - Inside our plant(Japan)

Specifications&Dimensions

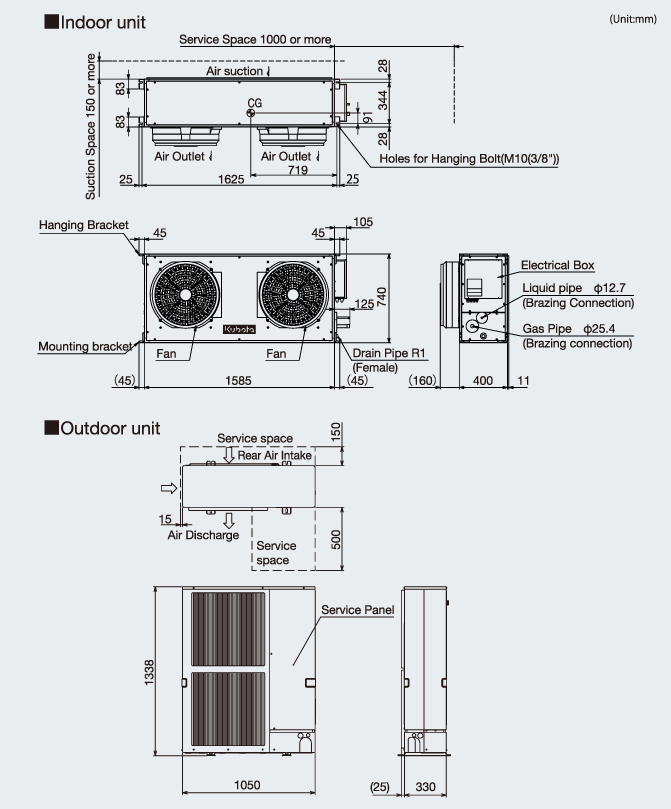

Dimensions
Specifications
Indoor unit Outdoor unit
Model name ZI-P280-G1 PUZ-ZM250YKA-K (Mitsubishi Electric)
Cooling Capacity kW 25 (7.0~27.6)
Btu/h 85300
Total input kW 8.90
COP 2.80
SHF 0.76
Heating Capacity kW 27.5 (11.7~27.5)
Btu/h 93747
Total input kW 7.60
COP 3.60
Power supply Phase φ 1 3
Cycle Hz 50 50
Voltage V 230 400
Max. current A 2.6 19.8
Breaker size (10) 32
Air volume CMM 80 (130 When external pressure is 0 Pa) 140
CFM 2824 (4590 When external pressure is 0 Pa) 4943
External pressure Pa 80 0
Sound lebel dB(A) Low 69 - Hi 77 Cooling 75 - Heating 76
External finish White Munsell N9 Ivory Munsell 3Y 7.8/1.1
Dimension W mm 1585 1050
D mm 400(+171) 1338
H mm 740 330(+25)
Weight kg 93 139
Refrigerant - R32
Charge kg - 6.5
Refrigeration Oil L - 2.30(FW68S)
Refrigerant pipe size Gas side O.D. mm 25.4 25.4
inch 1 1
Lquid side O.D. mm 12.7 12.7
inch 1/2 1/2
Refrigerant pipe length Height difference m Max. 30
Length m Max. 100 (If the pipe length exceeds 30m, additional r efrigerant charging is r equired.)
Unit drain pipe R1 -

  • Rating conditions
    Cooling

      Indoor : D.B. 27℃ W.B. 19℃
      Outdoor : D.B. 35℃ W.B. 24℃

    Heatling

      Indoor : D.B. 20℃
      Outdoor : D.B. 7℃ W.B. 6℃

    Refrigerant piping length (one way) : 5m
  • Guaranteed operating range
    Indoor Outdoor
    Cooling Upper limit D.B. 35℃, W.B. 23℃ D.B. 52℃
    Lower limit D.B. 19℃, W.B. 15℃ D.B. -5℃
    Heating Upper limit D.B. 28℃ D.B. 28℃, W.B. 15℃
    Lower limit D.B. 17℃ D.B. -28℃, W.B. -20℃
  • 3. Guaranteed voltage
    Indoor unit : 200 ～ 277V, 50Hz
    Outdoor unIt : 342 ～ 457V, 50Hz
  • 4. Above data are based on the indicated voltage.
    Indoor unit : 1 phase 230V 50Hz
    Outdoor unit : 3 phase 400V 50Hz
  • 5. There are restrictions on the minimum floor space that can be installed.
    Refer to the installation manual of the outdoor unit for details.
